Drive Shafts


DANA Industrial Drive Shafts Catalogue

Design features
tt  back to Table of contents
Series 390 * 392

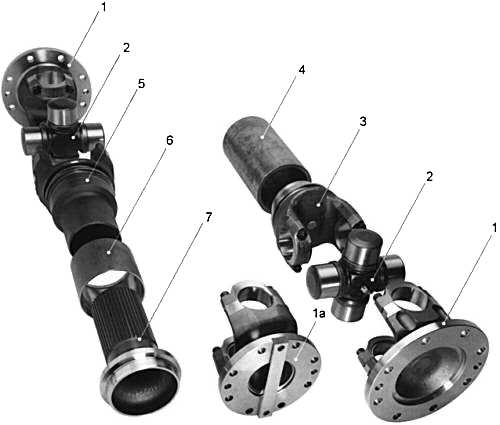

Main components of the cardan shafts

1. Flange yoke for series 390 (friction connection)
1a. Flange yoke for series 392 (face key connection)
2. Journal cross assembly
3. Tube yoke
4. Tube
5. Tube yoke with sliding muff
6. Slip stub shaft
7. Cover tube assembly
