Drive Shafts


DANA Industrial Drive Shafts Catalogue

Data sheets
tt  back to Table of contents
Companion flanges
We manufacture standard companion flanges with cylindrical bore holes and face keyway (material C45; hardened and tempered 750-900 N/mm²) on request. For designs deviating from the standard, e.g. oil pressure connection, conical bore, flat journal and material we would ask you to send us an inquiry and the relevant drawings.

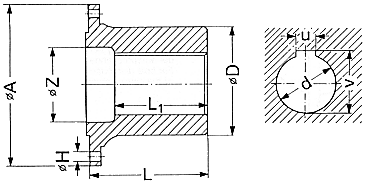

Cardan shaft connection Rough-turn dimensions
Shaft size ø A
mm		 I 5) x H 4) ø Dmax.
mm		 ø dmax.
mm		 Lmax.
mm
687.15
687.20		 100 6 x 8,1 69,5 25 110
687.15
687.20
687.25
687.30		 120 8 x 10,1 84 30 130
687.25
687.30
687.35
687.40		 150 8 x 12,1 110,3 35 150
687.35
687.40
687.45		 180 8 x 14,1 132,5 45 170
687.55
687.65		 10 x 16,1
687.45
687.55
687.65
587.50		 225 8 x 16,1 171 85 185
587.50
587.55		 250 8 x 18,1 189 100 195
587.60
390.60		 285 8 x 20,1 213 110 205
390.65 315 8 x 22,1 247 122 215
390.70 350 10 x 22,1 277 136 225
390.75 390 10 x 24,1 308 150 235
390.80 435 10 x 27,1 342 170 245

4) Tolerance +0,2 mm
(for 390.75 and 390.80 Tolerance +0,5 mm)
5) Number of flange holes


Please state with your order:
Shaft size = _________________________

Flange ø A
mm		 = _________________________

I 5) x H 4) = _________________________

L
mm		 = _________________________

L 1
mm		 = _________________________

Z
mm		 = _________________________

D
mm		 = _________________________

d
mm		 = _________________________

u
mm		 = _________________________

v
mm		 = _________________________
