| Series 393 |
| Design 0.01

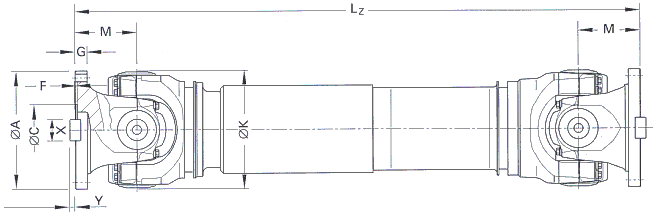

with length compensation, tubular design

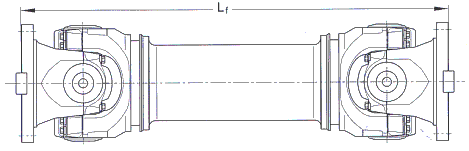

0.03 without length compensation, tubular design |
|
0.01 |
|
| |
| |
 |
|
 |
|
Flange connection with
face key
Each shaft size has a specific hole
pattern (see table).
Other hole patterns on request |
| |
10-hole
flange |
|
16-hole
flange |
|
|
|
| 0.03 |
|
|
|
Series 393.75-.90
|
Shaft size |
393.75 |
393.80 |
393.85 |
393.90 |
|
TCS |
kNm |
390 |
580 |
750 |
1150 |
|
TDW |
kNm |
140 |
220 |
285 |
435 |
|
LC |
- |
1700 |
7070 |
15600 |
62600 |
|
Deflection angle |
ß |
 ° |
10 |
10 |
10 |
10 |
|
Flange-ø |
A |
mm |
390 |
435 |
480 |
550 |
|
Rotations-ø |
K |
mm |
390 |
435 |
480 |
550 |
| |
B |
mm |
345 |
385 |
425 |
492 |
|
C |
mm |
170 |
190 |
205 |
250 |
|
F |
mm |
8 |
10 |
12 |
12 |
|
G |
mm |
40 |
42 |
47 |
50 |
|
H |
mm |
25 |
28 |
31 |
31 |
|
I |
- |
10 |
16 |
16 |
16 |
|
M |
mm |
205 |
235 |
265 |
290 |
|
X |
mm |
70 |
80 |
90 |
100 |
|
Y |
- |
18 |
20 |
22,5 |
22,5 | |
TCS
TDW
|
Yield torque 30%
over TCS Bearing limit torque
Fatigue
torque
| |
|
Lc
I
ß |
Bearing
capacity factor
Number of flange holes
max.
deflection angle per joint
| | |
further
designs on request |
|
|
