DANA Industrial Drive Shafts Catalogue

Data sheets

tt back to Table of contents

Series 390 max. bearing life

Design

0.01 with length compensation, tubular design
0.02 with large length compensation, tubular design
0.03 without length compensation, tubular design
9.01 with length compensation, short design
9.02 with length compensation, short design
9.03 with length compensation, short design
9.04 without length compensation, double flange shaft design

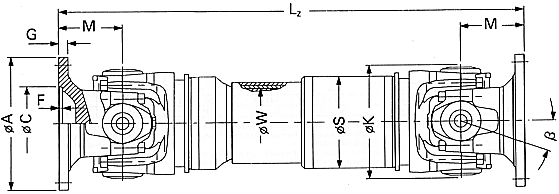

0.01

Standard flange connection		Dowel pin connection according to DIN 15451

8-hole flange	10-hole flange	8-hole flange	10-hole flange

0.02

0.03

9.01
9.02
9.03

9.04

Series 390 max. bearing life

Shaft size			390.60	390.65	390.70	390.75	390.80
TCS		kNm	60	90	130	190	255
TK		kNm	47	70	102	145	195
TDW		kNm	23	36	53	75	102
LC		-	14,8	70,2	238	618	1563
Deflection angle	ß	°	15	15	15	15	15
Flange-ø	A	mm	285	315	350	390	435
Rotation-ø	K	mm	240	265	300	330	370
	B 1)	mm	245	280	310	345	385
	BS 1)	mm	240	270	300	340	378
	C 2)	mm	175	175	220	250	280
	F 3)	mm	6	6	7	7	9
	G	mm	20	22	25	28	32
	H 4)	mm	20,1	22,1	22,1	24,1	27,1
	HS 4.1)	mm	28	30	32	32	35
	I 5)	-	8	8	10	10	10
	IS 5.1)	-	4	4	4	4	4
	M	mm	135	150	170	190	210
	S	mm	167,7 x 9,8	218,2 x 8,7	219 x 13,3	273 x 11,6	273 x 19
	W 7)	-	115 x 2,5	150 x 3	150 x 3	185 x 5	185 x 5

TCS
TK

TDW
Lc

*

Functional limit torque *
Catalogue torque *
(Friction tight flange without dowel pins have a lower
transmittable torque)
Fatigue torque *
Bearing capacity factor *

Explanations see Selection of cardan shafts

ß = max. deflection angle per joint

1) Tolerance +- 0,1 mm
2) Spigot fit H7
3) Effective spigot depth
4) Tolerance + 0,2 mm
4.1) Fit H12
5) Number of flange holes
(Standard flange connection)
5.1) Number of flange holes
(Dowel pin connection)
7) Involute spline DIN 5480

Length dimensions * weights

Design	Shaft size		390.60	390.65	390.70	390.75	390.80
0.01	Lz min	mm	870	980	1070	1210	1280
	La	mm	100	135	135	170	170
	G	kg	133	216	275	397	476
	GR	kg	38,2	45,0	67,5	74,8	119
	Jm	kgm²	1,04	1,61	2,51	4,20	8,20
	JmR	kgm²	0,239	0,494	0,716	1,28	1,72
	C	Nm/rad.	1,0 x 10	1,65 x 10	2,43 x 10	3,3 x 10	4,7 x 10
	CR	Nm/rad.	2,43 x 10	5,04 x 10	7,3 x 10	1,3 x 10	1,75 x 10
0.02*	Lz min	mm	990	1080	1170	1295	1365
	La min	mm	200	220	220	250	250
	G	kg	178	280	337	508	586
	GR	kg	38,2	45,0	67,5	74,8	119
0.03	Lf min	mm	640	710	800	890	960
	G	kg	109	206	218	303	383
	GR	kg	38,2	45,0	67,5	74,8	119
9.01	Lz	mm	845	599	1045	1175	1245
	La	mm	100	135	135	170	170
	G	kg	131	204	263	392	472
9.02	Lz	mm	810	890	980	1100	1170
	La	mm	70	75	75	95	95
	G	kg	129	195	254	373	453
9.03	Lz	mm	750	835	925	1030	1100
	La	mm	65	75	75	85	85
	G	kg	129	198	259	376	456
9.04	Lf	mm	540	600	680	760	840
9.04	G	kg	108	146	209	284	379

Lz min
La
Lf min
Lz + La
G
GR
Jm
JmR
C
CR

shortest possible compressed length
Length compensation
shortest fixed length
max. operating length
Weight of shaft
Weight per 1 m tube
Moment of inertia
Moment of inertia per 1 m tube
Torsional stiffness or shaft without tube
Torsional stiffness per 1 m tube

* Larger length compensation on request

Flange bolt connections are also supplied on request.
For summary see Flange boltings.

Further designs on request
