Drive Shafts


DANA Industrial Drive Shafts Catalogue

Technical directions for application
tt  back to Table of contents
Calculation scheme of radial forces on connecting bearings

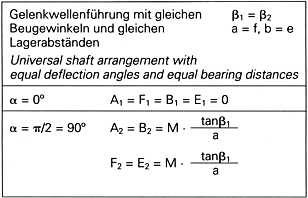

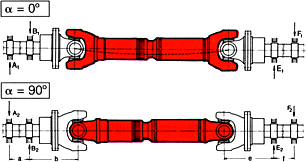

Universal shaft in Z-arrangement

Position 0° flange yoke right-angled to drawing plane
Position /2 flange yoke in drawing plane

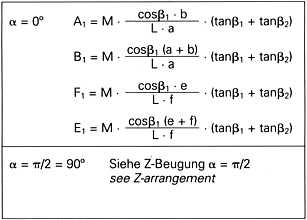

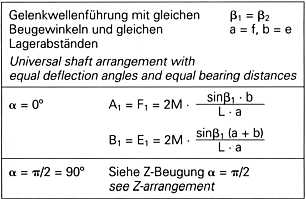

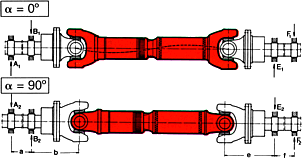

 Universal shaft in W-arrangement

Position 0° flange yoke right-angled to drawing plane
Position /2 flange yoke in drawing plane
