Drive Shafts


DANA Commercial Drive Shafts Catalogue

Data Sheets
tt  back to Table of contents
Centre bearings

2015

2020

2025

2030

2035

2040

2045

2047

2050

2055

2060

2065
Bearing-Ф

T

mm

45

45

40

45

45

55

55

55

55

70

70

70

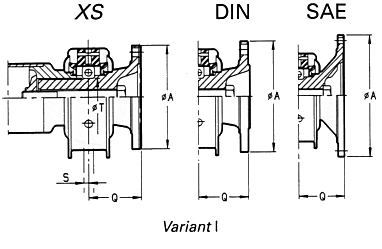

Variant

II

II

I

I

I

I

I

I

I

I

I

I
Hole-Ф1)

d

mm

-

-

12,7

-

-

-

15

15

15

15

15

15
Hole length1)

V1+V2

mm

13,5 x
18

13,5 x
18

14,5 x
13

14,5 x
13

14,5 x
13

14,5 x
16

15 x
30

15 x
30

15 x
30

15 x
30

15 x
30

15 x
30
Hole distance

X

mm

168,1

168,1

168,1

193,5

193,5

193,5

200

200

200

220

220

220
Flange thickness

t

mm

6,5

6,5

4

4,8

4,8

4,8

4,8

4,8

4,8

5,8

5,8

5,8
Flange distance

N

mm

58

58

63

69

69

71,5

71,5

71,5

71,5

85,8

85,8

85,8
XS Flange-Ф

A

mm

-

-

120

120

155

180

180

180

180

180

180

180

Q

mm

-

-

70

73

73

80

80

80

80

107

107

107
DIN Flange-Ф

A

mm

180

180

180

Q

mm

107

107

107
SAE Connection

Size

1300

1400

1600
Flange-Ф

A

mm

96,8

115,9

174,5

Q

mm

78

78

89

Explanations:
T

1)
 Midship bearing
diameter
Alternative long hole
or round hole

Selection of midship see
Cardan shaft without length compensation with midship. 		  Please note:
All value given are nominal. Exact information should only be obtained from drawing.

Attention:
Upon installation a stable centre bearing support should be enshured. (See Installations of drive lines). Please respsct this information concerning the safety of central bolt. If necessary contact us.
