Drive Shafts


DANA Commercial Drive Shafts Catalogue

Data Sheets Standard variants
tt  back to Table of contents

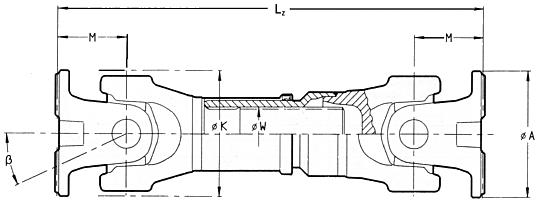

Short coupled cardan shaft with length compensation
Sleeve-Muff-Design




2015

2020

2025

2030

2035

2040

2045

2050

2055

2060

2065
Tcs

kNm

2,4

3,5

5,0

6,5

10,0

14,0

17,0

21,0,

25,0

30,0

35,0
Connection

-

DIN 100

DIN 120

XS 120

XS 120

XS 120

XS 150

XS 180

XS 180

XS 180

XS 180

XS 180
Flange-Ф

A

mm

100

120

120

120

120

155

180

180

180

180

180
Joint angle

β

°

25

25

25

25

25

25

25

25

25

25

25
Max.
Rotations-Ф

K

mm

90

98

113

127

144

160

174

180

178

196

206

M

mm

48

54

60

63,5

75

82

87

85

92

100

105

Lz max.

mm

348

381

405

436

510

505

541

531

571

590

631

La max.

mm

90

100

100

110

110

110

110

110

100

110

110

GWmax.

kg

20,9

26,4

35,3

39,5

43

50,8

61,1

Lz min.

mm

296

322

341

362

470

465

501

491

531

550

591

La min.

mm

38

41

36

36

70

70

70

70

70

70

70

GWmin.

kg

19,3

24,8

33,3

37,1

40,2

48,4

57,9
Spline-Ф

W

mm

36

40

45

48

54

62

68

74

78

82

88

Explanations:
TCS
Lz max.

La max.
Lz min.

La min.
GW
 Functional limit torque
Compressed length with
max. length compression
Max. length compensation
Compressed length with
min. length compression
Min. length compensation
Weight of short coupled cardan
shaft with Lc min. / Lc max.
Recommended connection
Companion flanges:
- DIN:
- SAE:
- XS: 		according to ISO 7646
according to ISO 7647
Cross serration
according to ISO 8667
Propshaft flange yokes:
- XS: Cross serration
according to ISO 12667
Please note:
All values given are nominal. Exact information should only be obtained from drawing.

Attention:
Not all DIN/SAE-flange-connection can transmit the function-limit-torque of the corresponding propshaft size by friction.
