Drive Shafts


DANA Commercial Drive Shafts Catalogue

Data Sheets Standard variants
tt  back to Table of contents

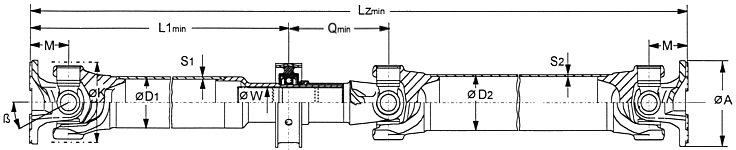

Shaft assembly with length compensation in midship bearing area

2015

2020

2025

2030

2035

2040

2045

2055
Tcs

kNm

2,4

3,5

5,0

6,5

10,0

14,0

17,0

25,0
Connection

SAE 1400

XS 120

XS 120

XS 120

XS 120

XS 150

XS 180

XS 180
Flange-Ф

A

mm

99

120

120

120

120

150

180

180
max. Joint angle

β

°

25

25

25

25

25

25

25

25
Joint angle

β

°

6

6

6

6

6

6

6

6
Max.
Rotations-Ф

K

mm

90

98

113

127

144

160

174

178

M

mm

43

54

60

63,5

75

82

87

92

Lz min.

mm

807

874

913

892

L1 min.

mm

262

276

313

347,5

347

372

385

382

La

mm

90

90

100

110

80

80

80

80
Tube 1

D1 x S1

mm

76,2 x 1,64

76,2 x 2,4

89 x 2,4

90 x 3

85 x 5

100 x 4,5

110 x 5

120 x 6
Tube 2

D2 x S2

mm

76,2 x 1,64

76,2 x 2,4

89 x 2,4

90 x 3

100 x 3

120 x 3

120 x 4

120 x 6
Joint overhang

Q min.

mm

75

78

86

88

99

201

207

218
Hole distance

X

mm

168,1

168,1

168,3

193,5

220

220

220

220

N

mm

58

58

62,8

69

85

85

85

85
Hole-Ф

d

mm

13,5

13,5

13

13

15

15

15

15

GR1

kg

9,9

10,6

12,9

16,8

GR2

kg

7,17

8,65

11,44

16,8
Spline-Ф

W

mm

54

62

68

78

Explanations:
TCS
Lz min.
L1 min.
La
GR1
GR2
 Functional limit torque
Compressed length
Min. length
Length compensation
Weight of Tube 1 (Tubelength 1 m)
Weight of Tube 2 (Tubelength 1 m)
Recommended connection
Companion flanges:
- DIN:
- SAE:
- XS: 		according to ISO 7646
according to ISO 7647
Cross serration
according to ISO 8667
Propshaft flange yokes:
- XS: Cross serration
according to ISO 12667
Please note:
All values given are nominal. Exact information should only be obtained from drawing.

Attention:
Not all DIN/SAE-flange-connection can transmit the function-limit-torque of the corresponding propshaft size by friction.
